Introduction
CenturyVal Three Lever Valve is designed for applications requiring reliable switching performance, high flow capacity and long-term operational stability.
In molecular sieve adsorber systems, valvesare required to operate repeatedly while maintaining sealing reliability and mechanical durability. Therefore, valve performance depends not only on the basic opening and closing function, but also on the optimization of valve structure, flow passage design, mechanical components, surface treatment and actuator configuration.
Based on these requirements, CenturyVal developed the Three Lever Valve with a series of design improvements, including optimized valve seat geometry, enhanced lever mechanism, durable surface treatment technology and flexible actuator solutions.
These design features provide improved flow performance, extended service life and easier maintenance for demanding industrial valve applications.
Ⅰ Product Overview: CenturyVal ThreeLever Valve
CenturyVal Three Lever Valve is developed for applications requiring reliable operation, high flow capacity and repeated switching performance.
The design concept focuses on improving several critical performance aspects:
- reducing mechanical wear during operation;
- improving sealing reliability;
- increasing flow efficiency;
- extending service life;
- simplifying maintenance.
Through structural optimization and detailed engineering improvements, the Three Lever Valve provides enhanced operating reliability compared with conventional designs.
A key feature of the valve is the optimized three-lever mechanical structure, which provides stable transmission performance during valve opening and closing.
This structure allows the valve to achieve reliable operation under demanding working conditions while maintaining long-term mechanical stability.
Ⅱ Optimized Valve Design for High Flow Capacity and Reliable Sealing
One of the major design advantages of CenturyVal Three Lever Valve is the optimization of the valve structure and flow passage.
① Linear Movement During Initial Opening and Closing
During the initial opening and closing process, the valve disc moves linearly.
This design reduces direct shear, compression and friction between the disc and valve seat.
As a result:
- sealing surface wear is reduced;
- operating stability is improved;
- service life of sealing components is extended.
② Vertical Sealing Position and Self-Cleaning Effect
The sealing position is arranged on a vertical plane.
This design helps prevent residual particles inside the pipeline from directly damaging the sealing surface.
At the same time, the movement of the valve provides a self-cleaning effect, helping maintain reliable sealing performance during long-term operation.
③ Maximum Opening Differential Pressure Protection
For molecular sieve adsorber applications, pressure difference management is an important consideration.
CenturyVal Three Lever Valve incorporates maximum opening differential pressure protection to help prevent molecular sieve adsorber collapse caused by excessive differential pressure conditions.
④ Increased Valve Seat Diameter and Venturi Contour Design
Flow capacity is a key performance factor for large-size industrial valves.
CenturyVal improves flow performance through optimized valve seat design.

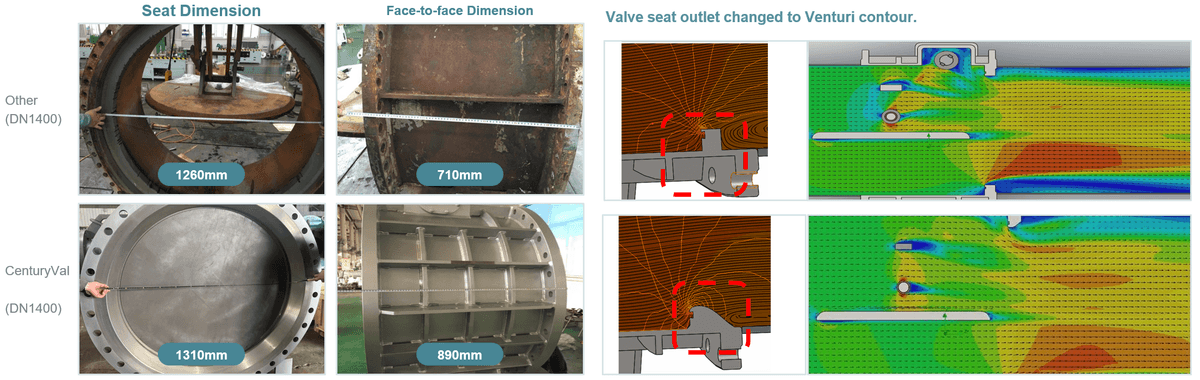

For DN1400 valve comparison:
The larger valve seat diameter provides an increased effective flow area.
In addition, the valve seat outlet adopts a Venturi contour design instead of a traditional 90° structure.
This smoother flow path helps achieve:
- improved flow efficiency;
- increased CV value;
- reduced flow resistance.
Ⅲ Mechanical Structure Designed for Long Service Life
For industrial valves, mechanical reliability directly affects overall system availability.
CenturyVal Three Lever Valve incorporates several structural improvements to enhance durability and operating life.

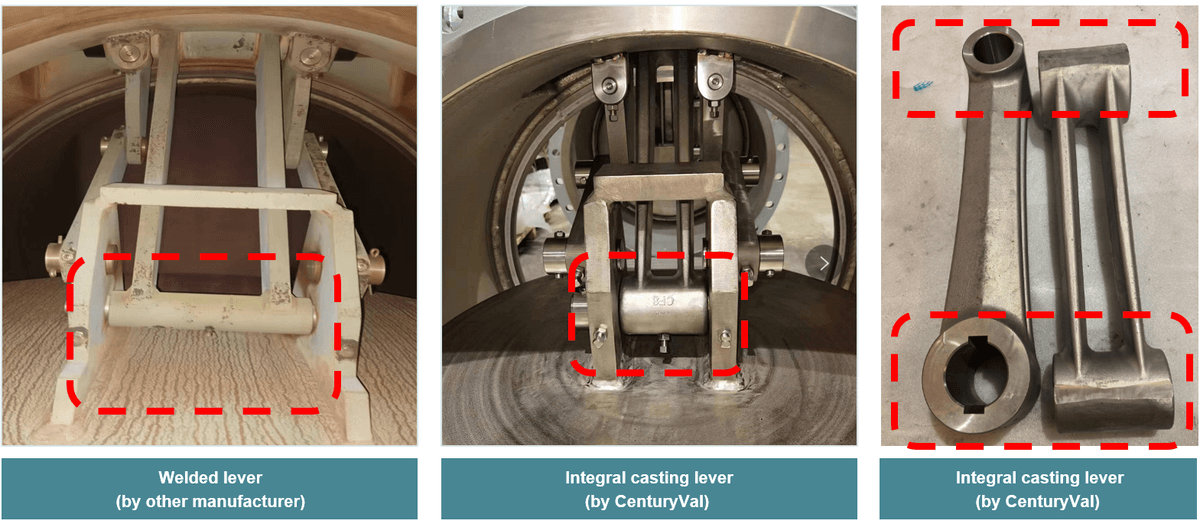

① Integral Cast Lever Structure
The main lever adopts an integral cast design instead of a welded structure.
This improves the overall strength and reliability of the lever assembly and helps maintain stable performance during repeated operation.

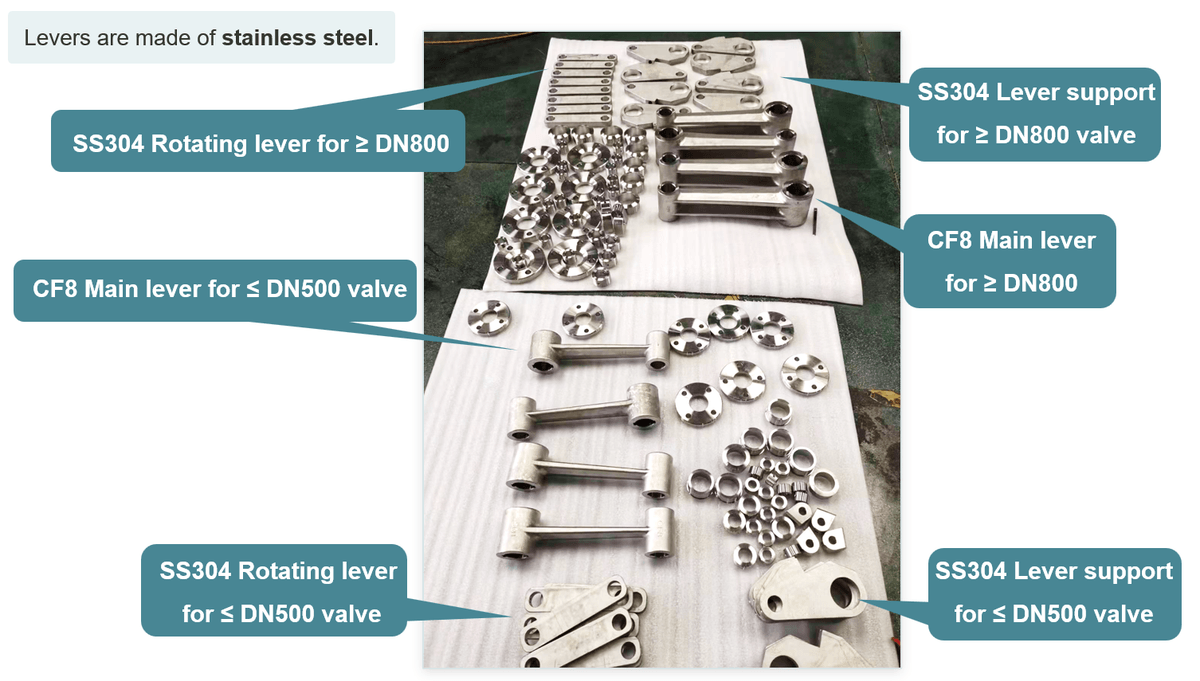

② Stainless Steel Lever Components
The lever components use stainless steel materials to provide improved durability and corrosion resistance.
This material selection supports reliable long-term operation under demanding industrial environments.
③ High-Temperature Self-Lubricating Bearings
The valve adopts high-temperature self-lubricating bearings.
This design reduces lubrication requirements and improves the stability of the mechanical transmission system.

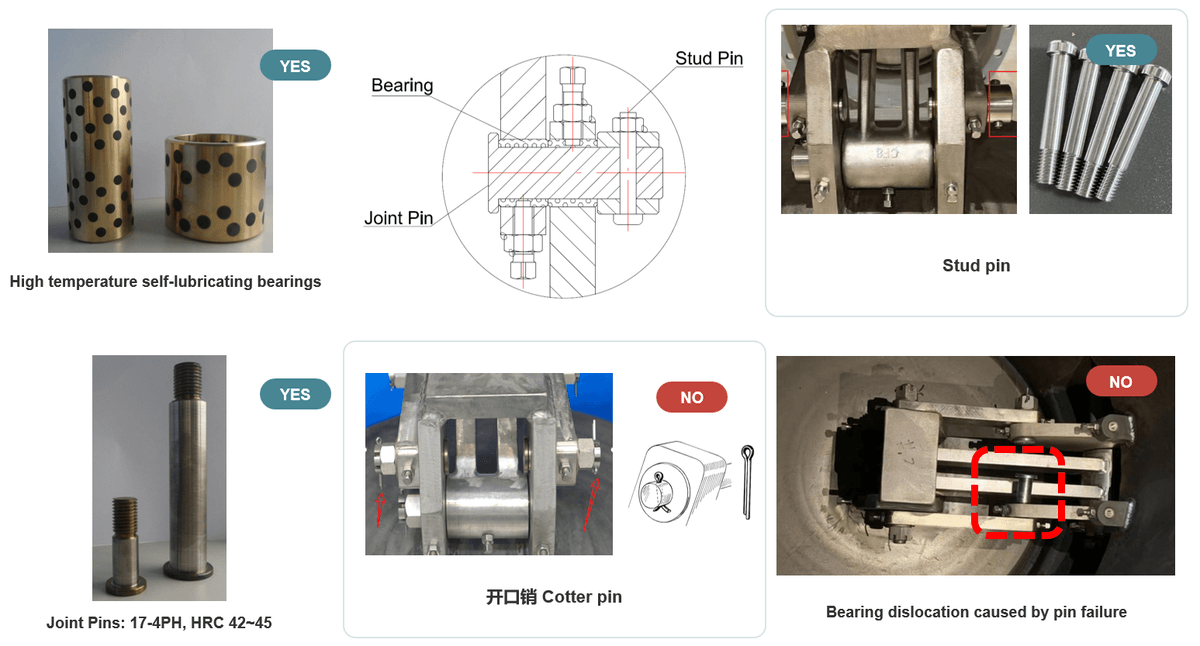

④ 17-4PH Joint Pins and Optimized Joint Structure
The joint pins are manufactured using 17-4PH material, providing high mechanical strength and reliability.
Compared with conventional joint structures, CenturyVal improves the connection mechanism through optimized bearing and pin design.
These improvements help reduce potential issues such as:
- pin failure;
- bearing displacement;
- mechanical instability after repeated operation.
⑤ 200,000-Cycle Life Test
To verify mechanical durability, CenturyVal Three Lever Valve has completed a 200,000-cycle life test.
The test demonstrates the reliability of the valve mechanism under repeated operating conditions.
Ⅳ Surface Treatment Technology for Improved Durability
Surface protection plays an important role in maintaining valve performance, especially in applications involving wear and corrosion risks.

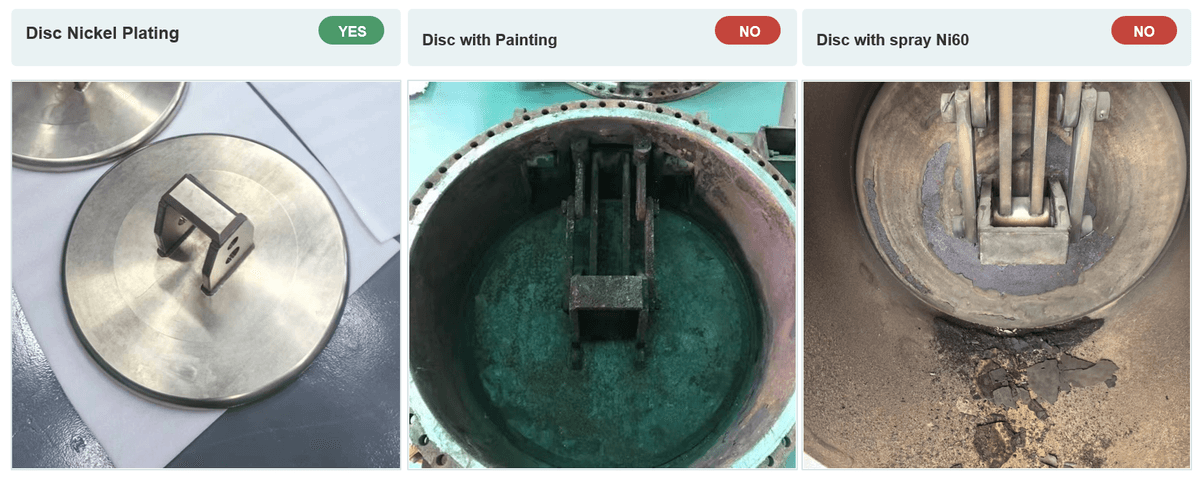

CenturyVal applies nickel plating treatment to the valve disc surface.
The nickel-plated surface provides:
- strong bonding performance;
- improved wear resistance;
- improved corrosion resistance.
Compared with conventional coating methods, nickel plating provides improved surface stability.
Traditional painting methods may experience coating peeling during operation, while nickel plating provides a more durable protective surface.
Optimized Surface Treatment Process

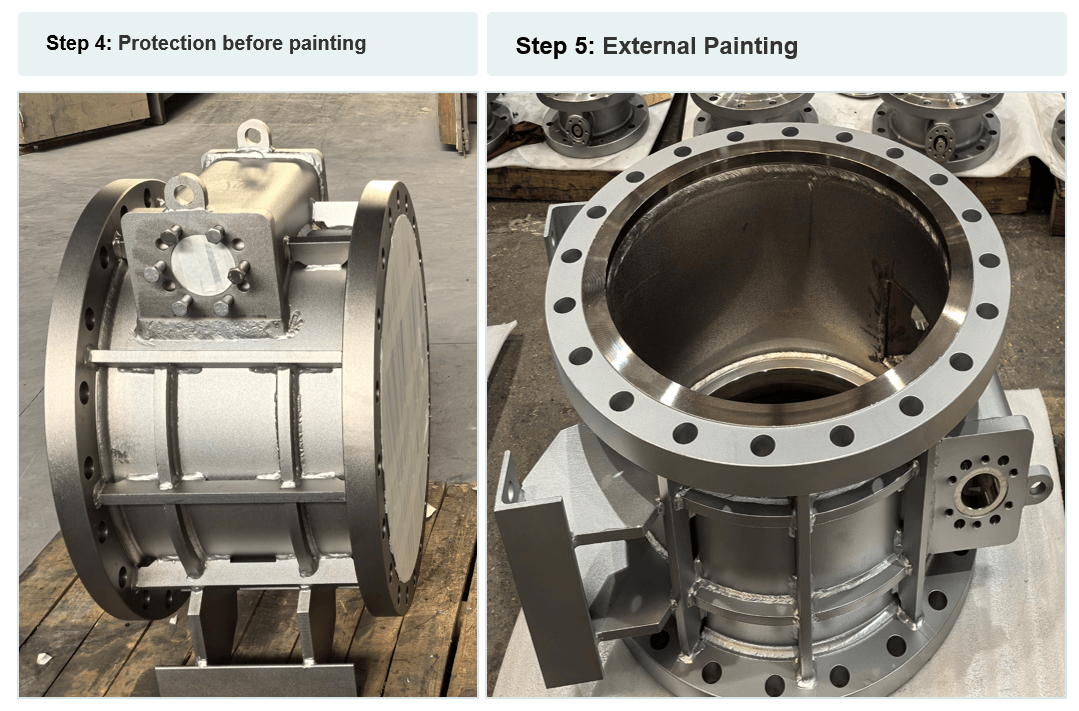

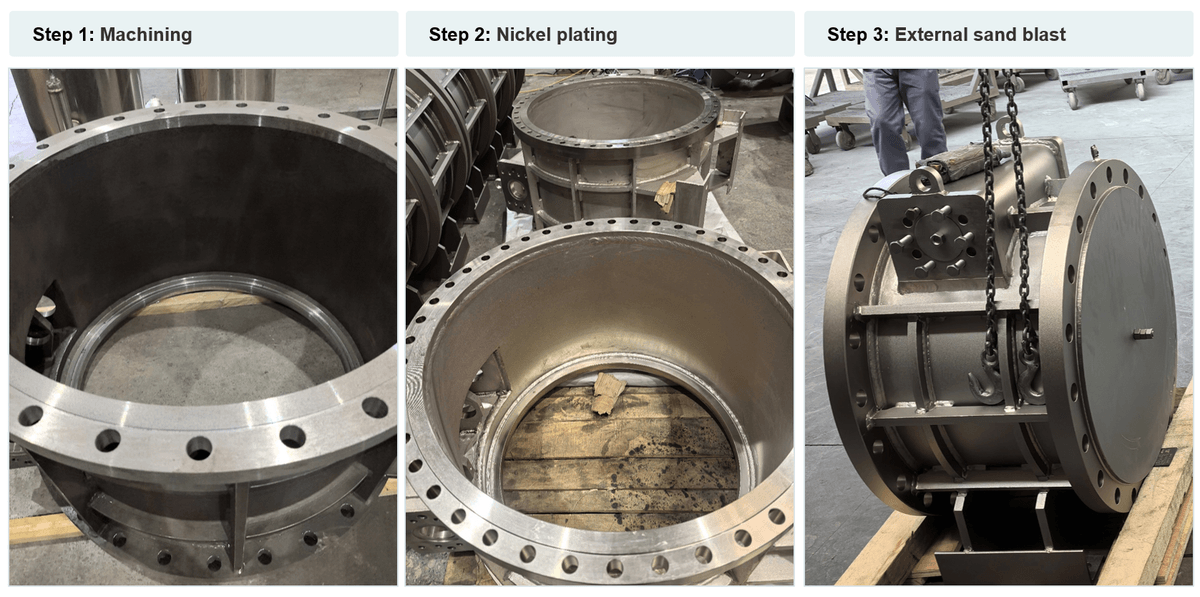

CenturyVal applies a multi-step surface treatment process:
- Machining;
- Nickel plating;
- External sand blasting;
- Protection before painting;
- External painting.
For internal valve surfaces, nickel plating is applied instead of internal painting or phosphating treatment.
This avoids introducing oil-containing materials into the internal surface and reduces contamination risks in demanding applications.
Ⅴ Reliable Actuator Design and Emergency Operation Capability
The actuator is a critical component affecting valve operation reliability.
Traditional actuator designs may experience challenges during long-term service, including:
- piston rod eccentric wear;
- air leakage;
- cylinder shaft sticking;
- actuator removal difficulties;
- corrosion issues;
- limited emergency operation capability.

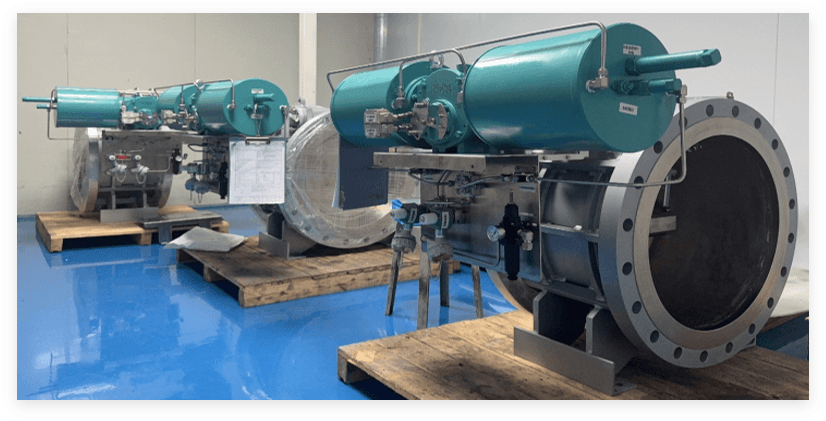

To address these challenges, CenturyVal Three Lever Valve adopts an optimized quarter-turn actuator design.
This actuator configuration provides:
- improved operating reliability;
- easier maintenance;
- reduced mechanical wear risks.
Emergency Manual Operation

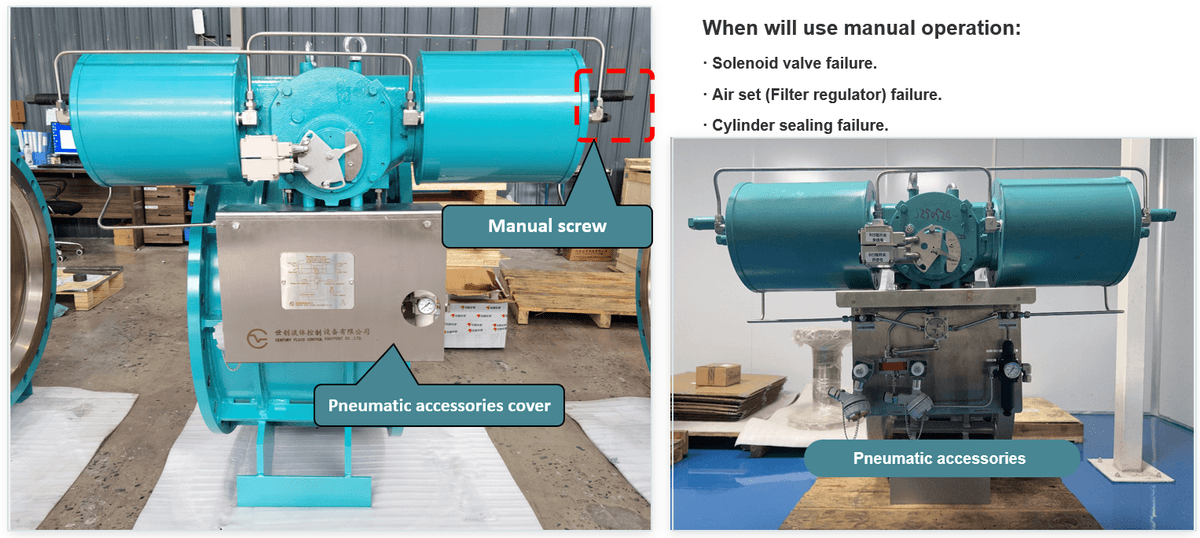

To improve operational flexibility, CenturyVal Three Lever Valve provides emergency manual operation capability.
The manual screw mechanism can be used when pneumatic control components experience problems, such as:
- solenoid valve failure;
- air filter regulator failure;
- cylinder sealing failure.
This feature provides an alternative operating method and improves system maintainability.
Ⅵ Flexible Installation and Maintenance Benefits

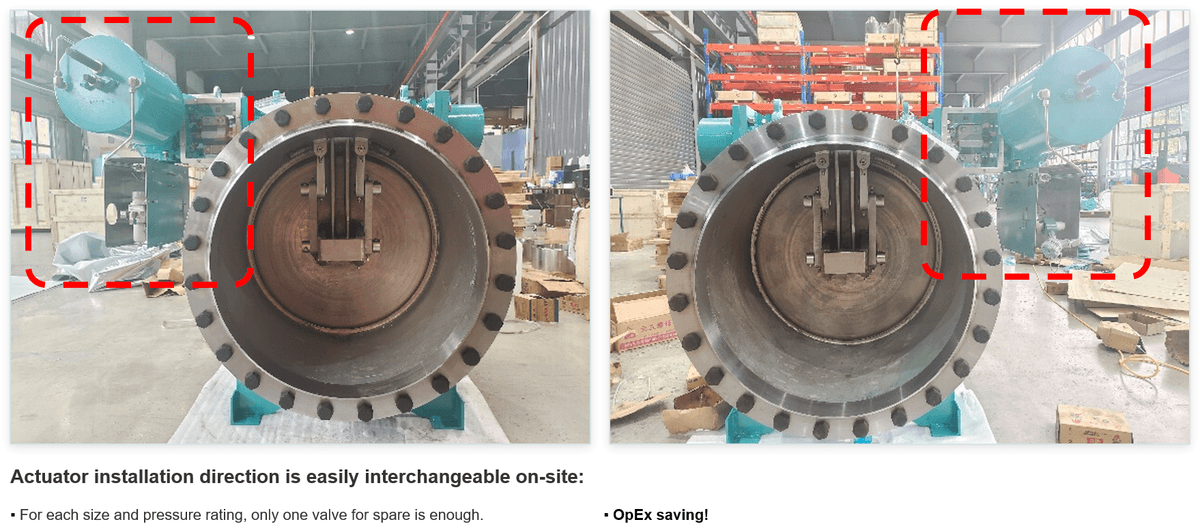

Different project conditions may require different actuator installation arrangements.
CenturyVal Three Lever Valve allows the actuator installation direction to be adjusted according to actual site requirements.
This provides several benefits:
- easier installation;
- improved maintenance flexibility;
- simplified spare management.
With this flexible design, customers can reduce the number of spare valve configurations required for different installation conditions.
CenturyVal Three Lever Valve combines optimized structural design, reliable mechanical performance and practical operating features.
The key advantages include:
① High Flow Capacity
Achieved through:
- optimized valve seat diameter;
- Venturi contour flow passage;
- improved CV value.
② Long Service Life
Supported by:
- integral cast lever structure;
- stainless steel components;
- self-lubricating bearings;
- 17-4PH joint pins;
- 200,000-cycle life verification.
③ Reliable Operation
Provided by:
- optimized sealing structure;
- differential pressure protection;
- durable surface treatment.
④ Maintenance-Friendly Design
Enhanced through:
- emergency manual operation;
- flexible actuator installation;
- simplified spare management.
Ⅷ Conclusion
CenturyVal Three Lever Valve is designed to provide reliable performance for molecular sieve adsorber applications through optimized flow design, durable mechanical construction, advanced surface treatment and practical actuator solutions.
By focusing on key engineering factors including valve flow capacity, sealing reliability, mechanical durability and maintenance convenience, CenturyVal provides a dependable industrial valve solution for customers requiring stable long-term operation.
For applications requiring reliable switching performance and high flow efficiency, CenturyVal Three Lever Valve offers an engineered solution for air separation and molecular sieve adsorber systems.
