Cryogenic Angle Control Valve

Cryogenic Angle Type Control Valve
A18 / A68 Series

Century A18 / A68 series cryogenic angle type control valve adopts a unique construction design for the cold box, mainly used in air separation units and other cold box applications.
Features
The design of plug easily pulling out construction greatly simplifies valve maintenance.
The optimized heat transfer design effectively avoids the occurrence of cold and icing on the outside of the extended bonnet.
A special design is adopted at the sealing part of the bonnet and the body, which improves the sealing reliability and ensures the stable operation of the equipment.
A floating connection and rigid connection are optional for connection with the cold box, and the floating connection can have its insulation cylinder and floating cap, which simplifies the design of the cold box.
The V-type plug can be selected for severe working conditions when the plug size is ≥15.
The optimized plug has excellent regulation performance.
A variety of trim material combinations are available to deal with different working conditions.

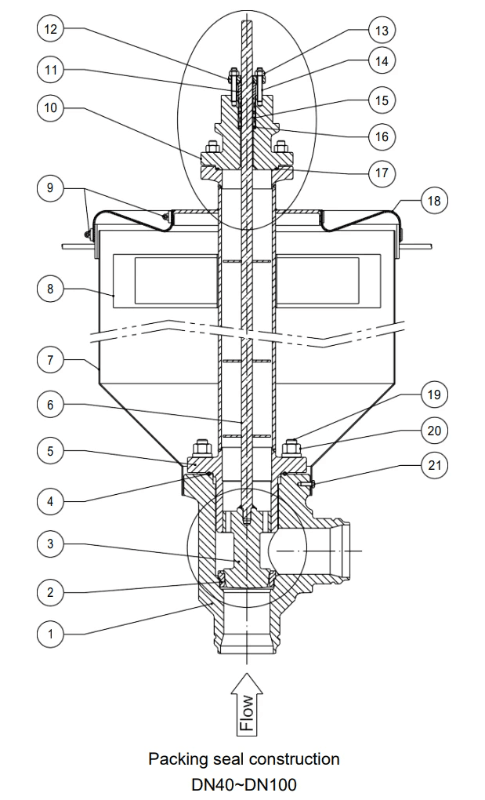

Construction Diagram
A18 Series, Floating Connection, DN15~DN100 Body Construction
*Request the catalogues for more sizes and details.
Construction Options

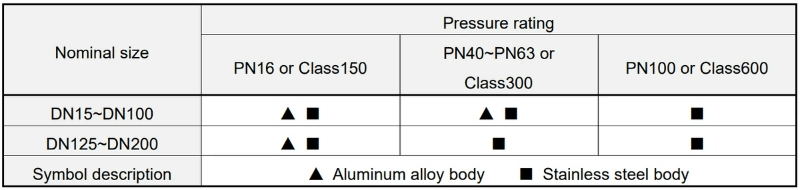

Nominal Size and Pressure Rating Range

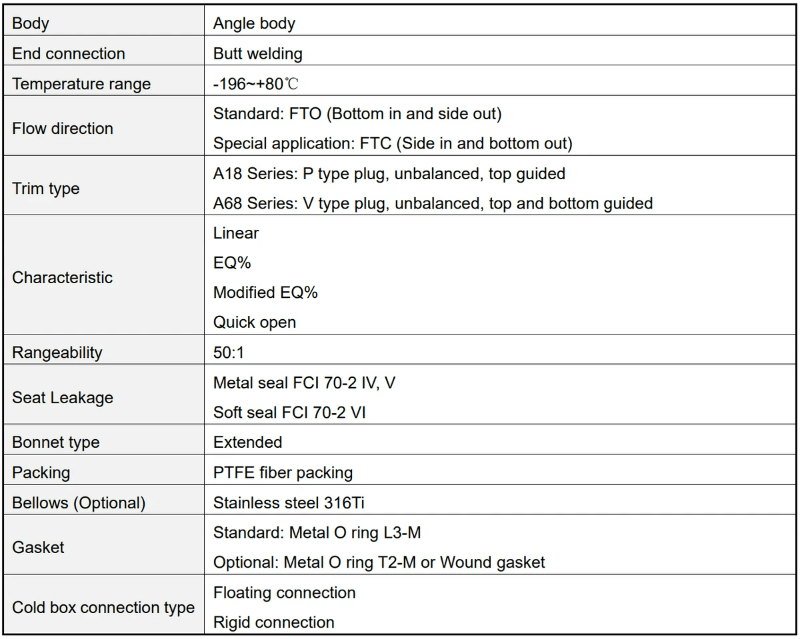

Specifications
