Cage Guided Control Valve

Cage Guided Control Valve
E20/E21/E22/E25/E26 Series

The cage-guided control valve adopts a balanced trim design, which can be used for the regulation and cut-off control of various liquid and gas media.
Features
The valve core adopts the cage guide structure, which has good stability to deal with various working conditions;
The flow path of the valve body has been optimized by CFD to obtain a more reasonable and efficient flow field distribution, which not only improves the flow capacity but also optimizes the regulation performance;
An extended bonnet can be provided to make it suitable for low-temperature mediums such as liquid nitrogen and liquid oxygen;
The valve stem can be sealed with bellows to meet the requirements of low emission;
The trim with various flow characteristics is optional, and has better regulation performance after optimization;
A wealth of optional combinations of valve trim materials are available to cope with various media and working conditions;
Standardized parts design shortens the production cycle of the whole valve while ensuring product quality.

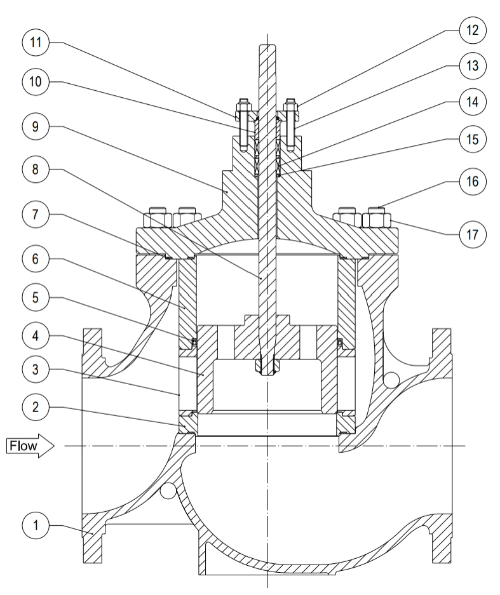

Construction Diagram
DN25~DN600, Body Structure With Standard Bonnet
Request catalogues for more sizes and details.

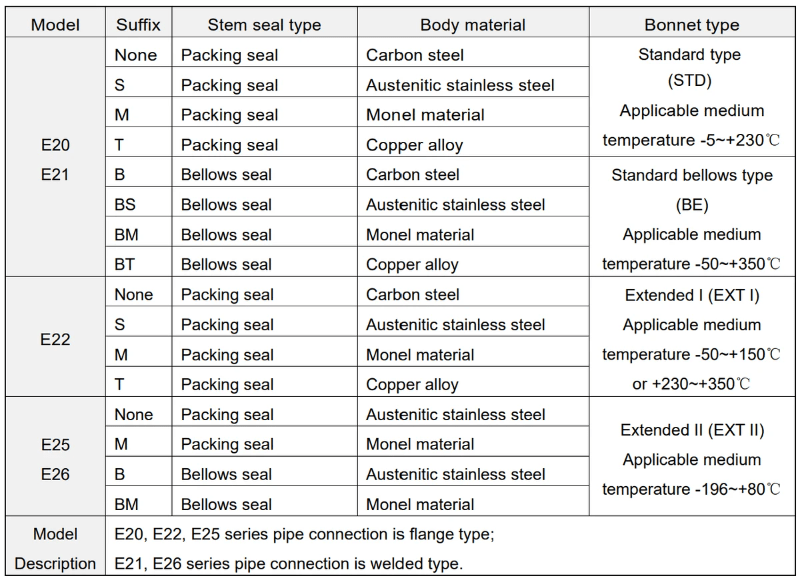

Construction Options

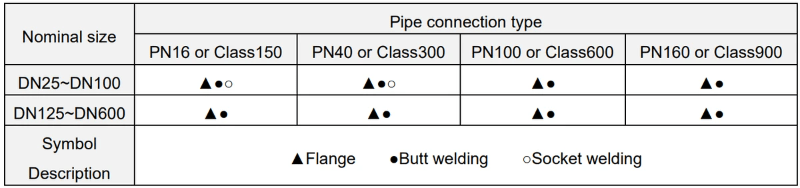

Nominal Size/Pressure Rating Range/Pipe Connection Method
Specifications
